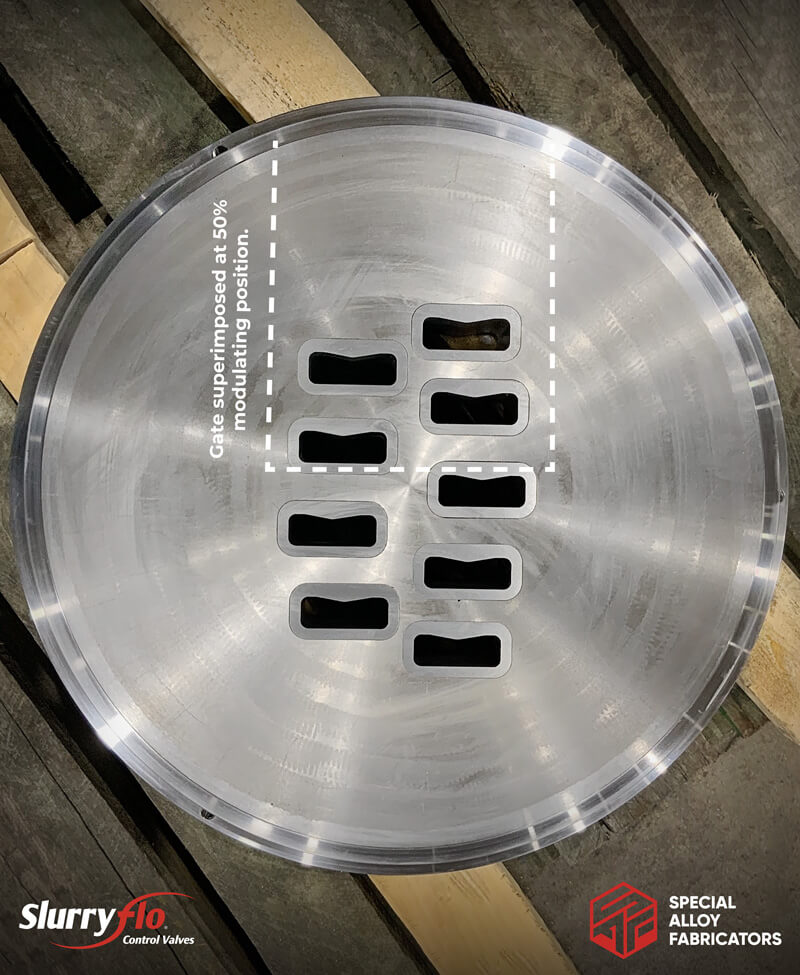

SlurryFlo Control Valve Trim with Bowtie Orifices

Flexing Our Design Capabilities.

All SlurryFlo seat plate designs are custom engineered; however, some are far more unique than others!

These ANSI 300 seat plates (and the SlurryFlo Control Valves they fit into) are designed to modulate fluid flashing applications. As the media also contains solids, it’s quite a challenging process to control.

Using complex CFD analysis, SAF engineers collaborated with the end user to develop a ‘one of-a-kind’ trim geometry. It was designed to optimize flow, increase system performance, and remain in service longer than alternative solutions.
